Project Description
Dry-mix Shotcrete Machine air Motor
Product Details:
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | SINCOLA |
| Certification: | ISO,CE,SGS |
| Model Number: | SPZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | USD5380-7850 |
| Packaging Details: | Nude Package in 40ft container |
| Delivery Time: | 3days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1sets 3day |
| Model: | SPZ-3,SPZ-5 SPZ-7 SPZ-9 | Rated output: | 3- 9m3/h |
|---|---|---|---|
| Electrical appliances: | SCHNEIDER,ABB | Gear box: | EVERGEAR(China) |
| Aggregate size: | 15 or 25mm | Max Conveying distance: | 200m,HOSE ID:51mm,65mm |
| Driving Type: | Electric 380V/400V/415V/460V/660V | Driving Type : | Air motor |
قائمة المنتجات
| Model | SPZ-3 | SPZ-5 | SPZ-9 |
| Output (m3/h) | 3 m3/h | 5.5 m3/h | 9 m3/h |
| Max.conv.dist | 200 | 200 | 150 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10mm | 15mm | 20mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ60 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Motor power | 3 kW(4hp) | 5.5 kW(7hp) | 7.5 kW(10hp) |
| Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1500x1320x830mm |
| Weight | 520kg | 780kg | 980kg |
| Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | ||
| Basic chassis | ①.Tyre ②.Skid ③.Rail-wheel | ||
| Driving Type | Electric Motor | ||

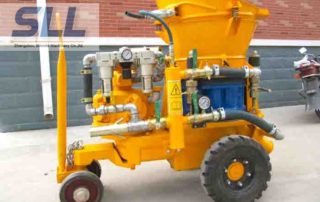

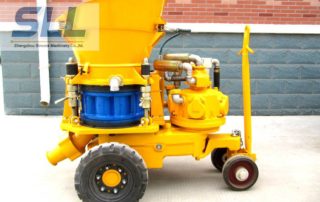

SPZ3-shotcrete-machine
Dry Mix Shotcrete Machine, also name Gunite machine, uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.
Features of Dry Mix Gunite Shotcrete Machine
1:Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period;
2:Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life;
3:Low pressure and low speed wortex air transport;
4:Well compact and seal, small dust, durable rubber plate;
5:Apply to steel fiber or chemical fiber concrete spraying.
Applications Of Dry Mix Gunite Shotcrete Machine
The power system is consisted by technical diesel engine or electrical engine. It can drive the pumping system directely which samplized the linkage structure and improved the efficiency. Strong power system reduced the rate of occuring faults;
The main hydraulic pump and valve group of hydraulic system is adopted Gemany Rexroth open-style system with accurate and reliable exchanging;
The elements of electrical controlling system is adopted Japan and Gemany’s original parts.The excellent assembly quality fully guaranteed the function of electrical controlling system;
The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete;
The Intelligentize & hommization design,easy to care and operate;
The specific configuration can be changed according to client’s situation.
