Projektbeschreibung
Biegemaschine für Stahlstangen
Produktdetails:
| Herkunftsort: | Zhengzhou,China |
|---|---|
| Markenname: | SINCOLA |
| Zertifizierung: | ISO,CE,SGS |
| Modell-Nr: | SWH |
Zahlung & Versandbedingungen:
| Mindestbestellmenge: | 1Sätze |
|---|---|
| Preis: | USD500-4000 |
| Verpackungsinformationen: | Standard-Holzverpackung ODER Nacktpaket im 20-Fuß-Container |
| Lieferzeit: | 1Tage |
| Zahlungsbedingungen: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Lieferfähigkeit: | 6sets 1day |
| Modell | SWH-40 | Bending bar diameter: | 3240mm |
|---|---|---|---|
| Radius of curved circular arc: | 300mm | Bending speed | 20m/min |
| Power: | 4kw | Gewicht: | 600kg |
PRODUKTLISTE
| Specification | |||||
| SWH24 | SWH32 | SWH40 | SWH45 | SWH50 | |
| Bending bar diameter | Φ12—24mm | Φ25—32mm | Φ32—40mm | Φ40—45mm | Φ45—50mm |
| Radius of curved circular arc | ≥100mm | ≥150mm | ≥300mm | ≥400mm | ≥500mm |
| Bending speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
| Motorleistung | 3KW | 4KW | 4KW | 4KW | 5.5KW |
| motor speed | 1440U/min | 1440U/min | 1440U/min | 1440U/min | 1440U/min |
| Stromspannung | 380V | 380V | 380V | 380V | 380V |
| Shape size(mm) | 860*600*700 | 960*760*800 | 1180*1000*880 | 1180*1000*880 | 1180*1000*880 |
| Whole machine quality | 360KG | 430KG | 600KG | 630KG | 680KG |
Biegemaschine für Stahlstangen
Biegemaschine für Stahlstangen
Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
-
- Biegemaschine für Stahlstangen
Biegemaschine für Stahlstangen

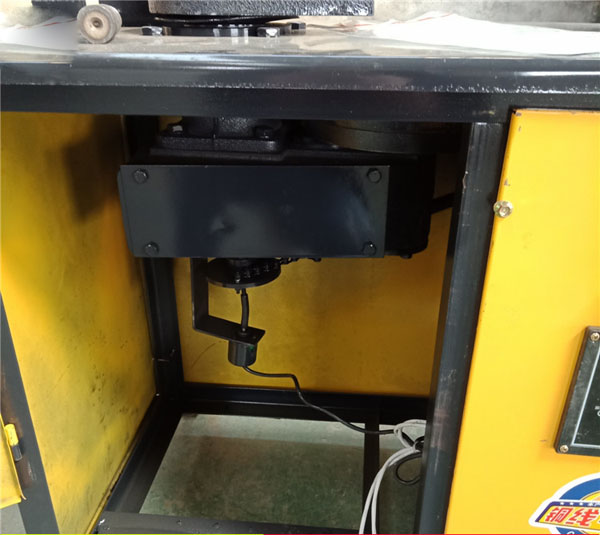

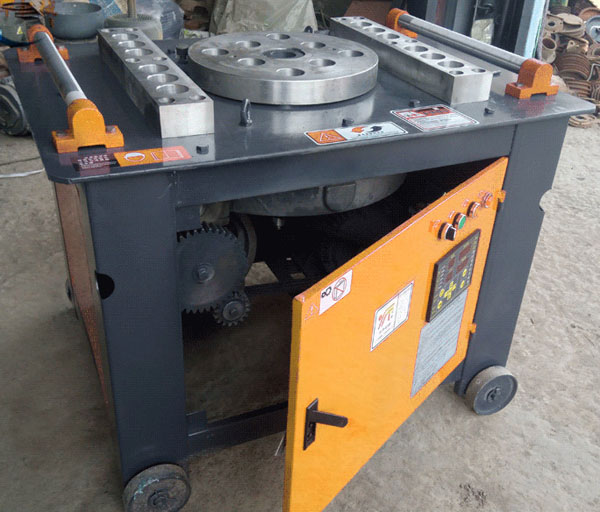

SWH40 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.

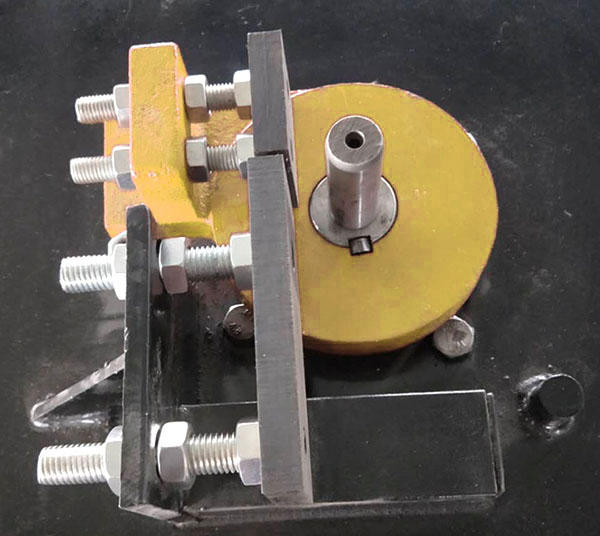

Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
Performances also under heavy loads and long working life.

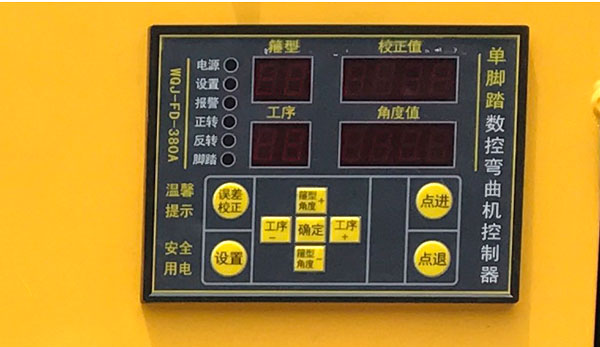

Two limit-switch to ensure the accuracy of the bending angle.
Biegemaschine für Stahlstangen
Features of steel bending machine:
All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.
Biegemaschine für Stahlstangen
Application range of steel bending machine:
Steel bending machine is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
