Descrição do Projeto
Máquina de concreto projetado com carregamento automático
Detalhes do produto:
| Lugar de origem: | Zhengzhou,China |
|---|---|
| Marca: | SEM CAUDA |
| Certificação: | ISO,CE,GV |
| Número do modelo: | SPZMF-7 |
Pagamento & Termos de envio:
| Quantidade mínima de pedido: | 1conjuntos |
|---|---|
| Preço: | USD4500-6800 |
| Detalhes da embalagem: | Embalagem de madeira padrão OU Pacote Nu em contêiner de 20 pés |
| Prazo de entrega: | 7-15 dias |
| Termos de pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| capacidade de fornecimento: | 500 definir/mês |
| Items | Unit | Technical parameters |
| Modelo | SPZMF-7 | |
| Capacity | m3/h | 5~7 |
| Conveying dist. | eu | 70/20 |
| Suitable water and cement ratio | 0.4-0.45 | |
| Aggregate size max. | milímetros | ≤20 |
| Conveying pipe ID. | milímetros | φ51 |
| Operating pressure | MPa | 0.2~0.4 |
| Air consumption | m3/min | 7-8 |
| Material feeding height | eu | 1.2 |
| Main motor | kw | 7.5 |
| Screw feeder motor | kw | 5.5 |
| Dimensions (Length×width×height) | milímetros | 2930×1152×1620 |
| Total weight | kg | 1250 |
LISTA DE PRODUTOS
| Items | Unit | Technical parameters |
| Modelo | SPZMF-7 | |
| Capacity | m3/h | 5~7 |
| Conveying dist. | eu | 70/20 |
| Suitable water and cement ratio | 0.4-0.45 | |
| Aggregate size max. | milímetros | ≤20 |
| Conveying pipe ID. | milímetros | φ51 |
| Operating pressure | MPa | 0.2~0.4 |
| Air consumption | m3/min | 7-8 |
| Material feeding height | eu | 1.2 |
| Main motor | kw | 7.5 |
| Screw feeder motor | kw | 5.5 |
| Dimensions (Length×width×height) | milímetros | 2930×1152×1620 |
| Total weight | kg | 1250 |
self loading shotcrete machine
self loading shotcrete machine
self loading shotcrete machine
Dry Mix Shotcrete Machine, also name Gunite machine, uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.
self loading shotcrete machine

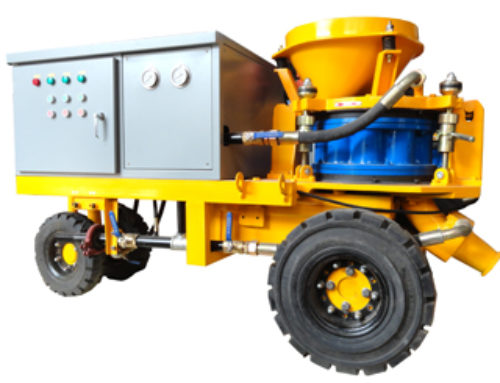

1. SPZMF-7 Self-loading Wet Shotcrete Machine can spray damp or wet concrete mixture.
2. SPZMF-7 Self-loading Wet Shotcrete Machine is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
self loading shotcrete machine
SPZMF-7 Self-loading Shotcrete Machine includes a shotcrete machine and a screw feeder.
SPZMF-7 Wet Shotcrete Machine has long conveying distance, fewer dusts, reliable performance.
SPZMF-7 Wet Shotcrete Machine has automatic feeding, rational structure, simplified operation, convenient maintenance and long service life.
self loading shotcrete machine
self loading shotcrete machine
