Descrição do Projeto

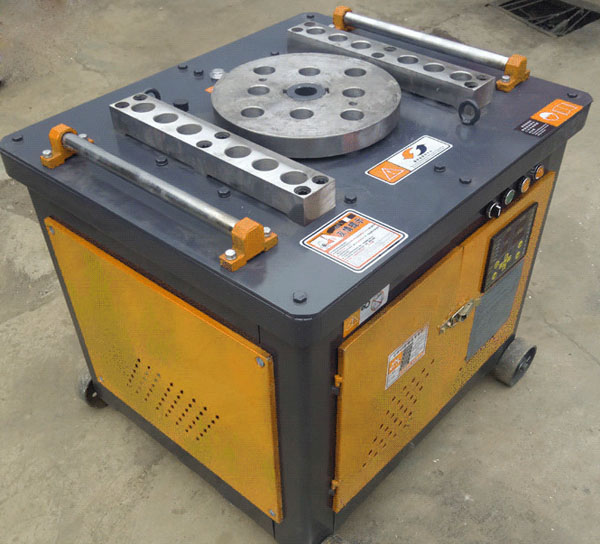

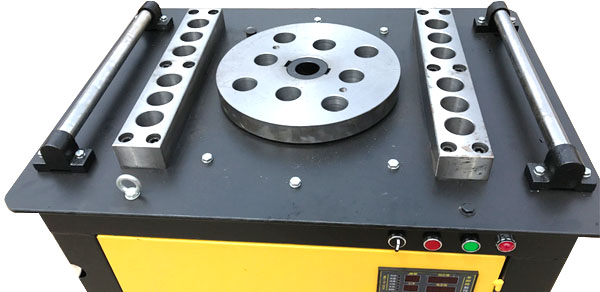

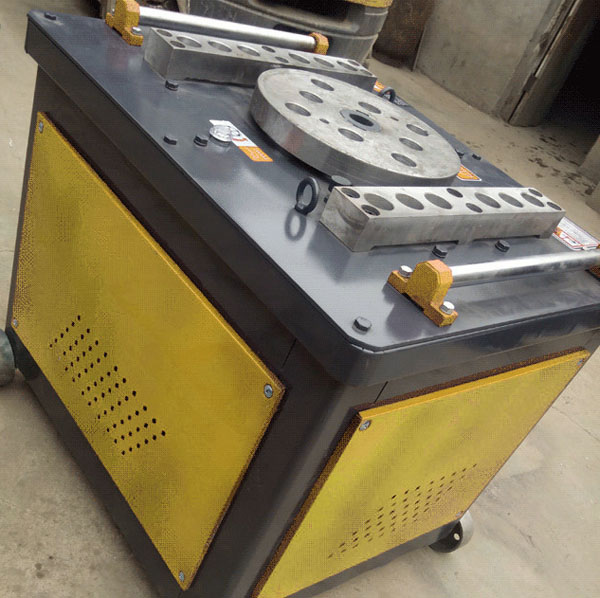

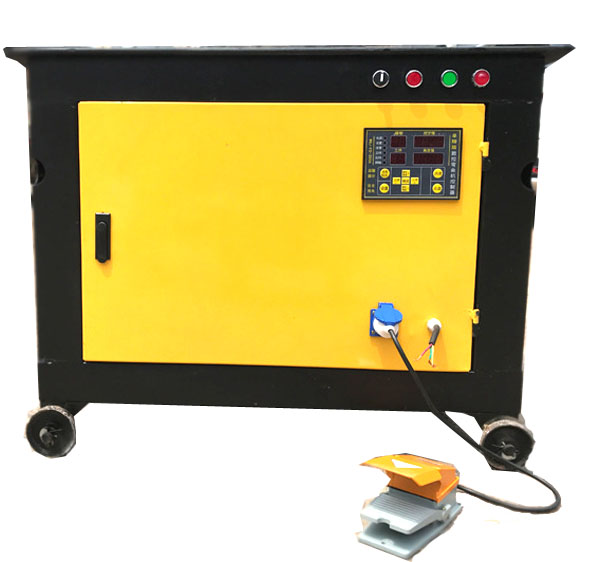

Steel bar bending machine
Detalhes do produto:
| Lugar de origem: | Zhengzhou,China |
|---|---|
| Marca: | SEM CAUDA |
| Certificação: | ISO,CE,GV |
| Número do modelo: | SWH |
Pagamento & Termos de envio:
| Quantidade mínima de pedido: | 1conjuntos |
|---|---|
| Preço: | USD500-4000 |
| Detalhes da embalagem: | Embalagem de madeira padrão OU Pacote Nu em contêiner de 20 pés |
| Prazo de entrega: | 1dias |
| Termos de pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| capacidade de fornecimento: | 6sets 1day |
| Modelo | SWH-40 | Bending bar diameter: | 3240milímetros |
|---|---|---|---|
| Radius of curved circular arc: | 300milímetros | Bending speed | 20m/min |
| Poder: | 4kw | Peso: | 600kg |
LISTA DE PRODUTOS
| Specification | |||||
| SWH24 | SWH32 | SWH40 | SWH45 | SWH50 | |
| Bending bar diameter | Φ12—24mm | Φ25—32mm | Φ32—40mm | Φ40—45mm | Φ45—50mm |
| Radius of curved circular arc | ≥100mm | ≥150mm | ≥300mm | ≥400mm | ≥500mm |
| Bending speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
| Potência do motor | 3KW | 4KW | 4KW | 4KW | 5.5KW |
| motor speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
| Voltage | 380V | 380V | 380V | 380V | 380V |
| Shape size(milímetros) | 860*600*700 | 960*760*800 | 1180*1000*880 | 1180*1000*880 | 1180*1000*880 |
| Whole machine quality | 360KG | 430KG | 600KG | 630KG | 680KG |

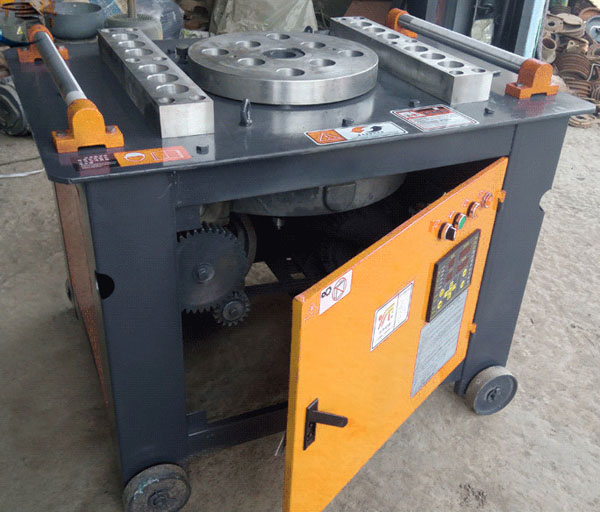

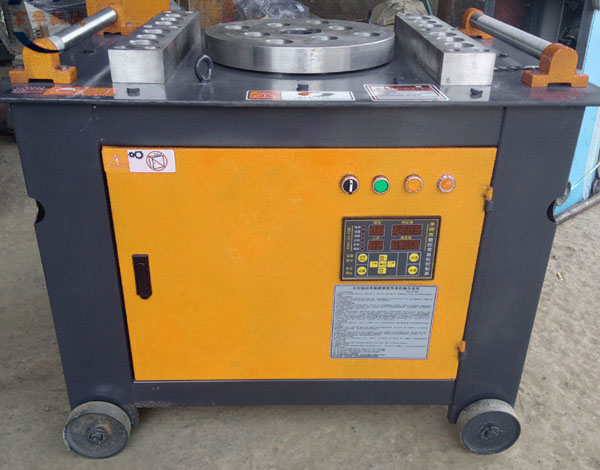

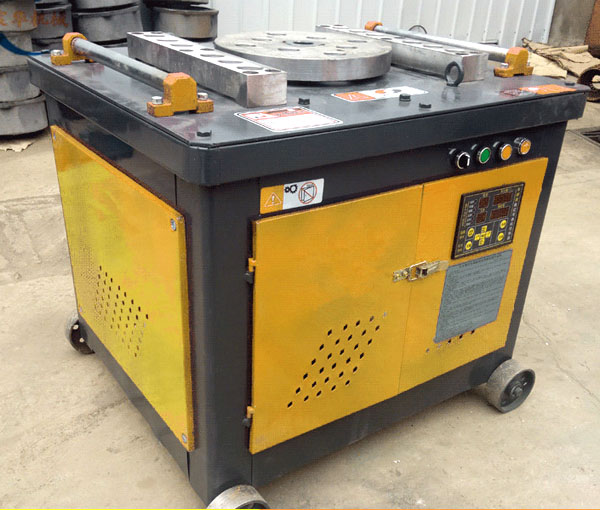

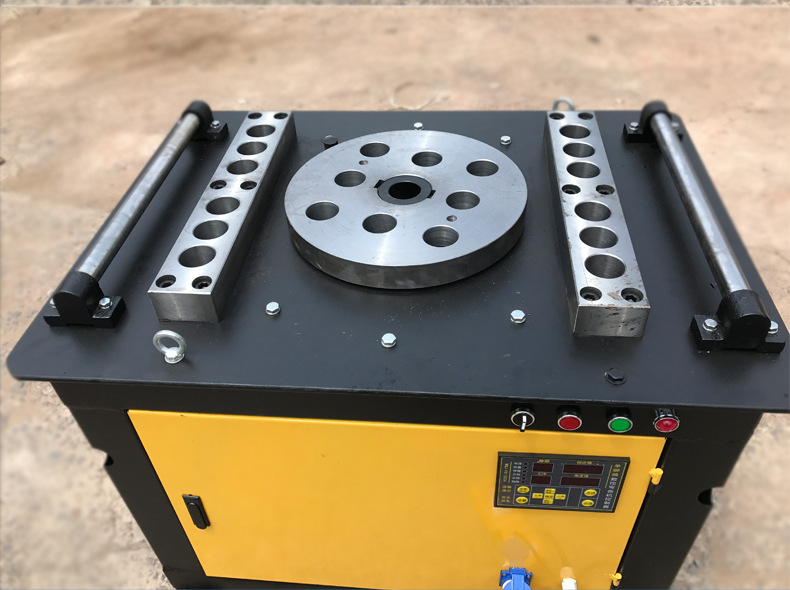

steel bar bending machine
steel bar bending machine
steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
steel bar bending machine
SWH40 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.

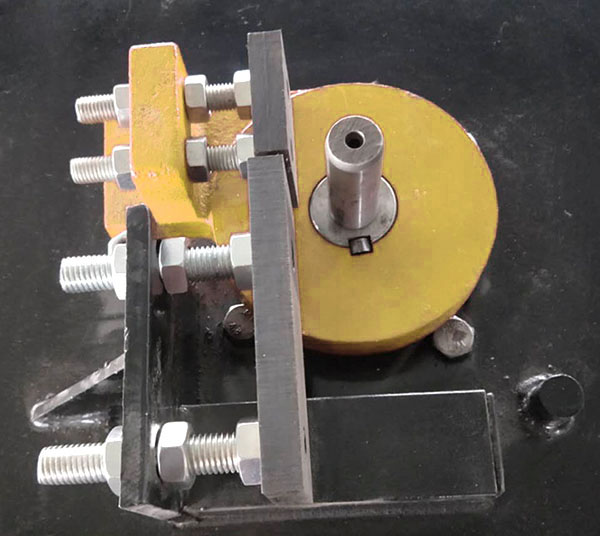

Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
Performances also under heavy loads and long working life.

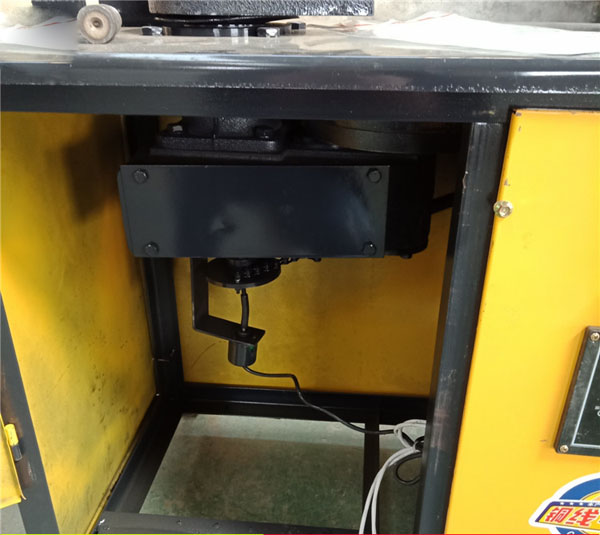

Two limit-switch to ensure the accuracy of the bending angle.
steel bar bending machine
Features of steel bending machine:
All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.
steel bar bending machine
Application range of steel bending machine:
Steel bending machine is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
