郑州施利乐机械有限公司是一家集研发、设计、制造、销售为一体的大中型重工机械制造公司。 从事工程施工材料（混凝土、砂浆、水泥浆等类似材料）泵送及喷射产品的开发生产数十年，积累大量成熟技术、优质原料来源、完善的加工设施、积极奋进的工作团队，为公司稳定发展奠定了坚实基础。新产品准确定位开发和完善体系为公司拓展了更多广的市场空间...
参数 |
SG70 |
OG90 |
整机形式 |
单缸双作用、球阀换向 |
单缸双作用、球阀换向 |
排量 |
0-70 L/min |
0-100 L/min |
工作压力 |
10 MPa |
10 MPa |
缸径 |
φ110 mm |
φ110 mm |
活塞行程 |
150 mm |
150 mm |
往复次数 |
31 /min |
45 /min |
吸口直径 |
38 mm |
38 mm |
排口直径 |
32 mm |
32 mm |
驱动动率 |
7.5 kW |
11 kW |
传动形式 |
液压传动 |
液压传动 |
底盘形式 |
滑橇式 |
滑橇式 |
重量 |
540 kg |
580 kg |
整机尺寸（长×宽×高） |
1505×770×1110 mm |
1505×770×1110 mm |
注：每种型号输浆可选单液或双液，底盘可选轮胎或滑撬。 |
||

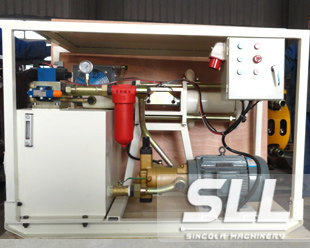

Full Hydraulic Grouting Pump, often work together with RM mixer. The idea choice of engineering grouting.
SG70 / OG90 full hydraulic grout pump is a Single cylinder double-acting grouting pump with hydraulic drive, which is a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining,underwater foundations , bridge decks , deep well casing, slope line grouting,etc,
1.Single piston double-acting;
2.Oil hydraulic drive;
3.Compact structure with reliable working;
4.Ball valve.
Full hydraulic grout pump, often work together with RM mixer. The idea choice of engineering grouting.
SG70 / OG90 full hydraulic grout pump is a Single cylinder double-acting grouting pump with hydraulic drive, which is a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining,underwater foundations , bridge decks , deep well casing, slope line grouting,etc,
